Balluff BNS02FE, Safety Switch, BNS 813-B02-L12-61-A-10-01
Item #: 457724499
Dimension = 79 x 36 x 63 mm, Housing material = Aluminum, Anodized, Number of switching positions = 2x Roller bearing, Version = Safety EN 60204-1, Operating principle = 1-2. Switch position: Mechanical, Continuous current = 1-2. Switch position: 6 A, Rated operating voltage Ue = 1-2. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-2. Switch position: 120 m/min, Switch position spacing = 12 mm, Connection type = 1-2. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS00RT, Safety Switch, BNS 813-D02-R12-100-10-01
Item #: 457724593
Dimension = 120 x 70 x 83 mm, Housing material = Aluminum, Anodized, Number of switching positions = 2x Roller, Version = Safety EN 60204-1, Operating principle = 1-2. Switch position: Mechanical, Continuous current = 1-2. Switch position: 6 A, Rated operating voltage Ue = 1-2. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-2. Switch position: 60 m/min, Switch position spacing = 12 mm, Connection type = 1-2. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE

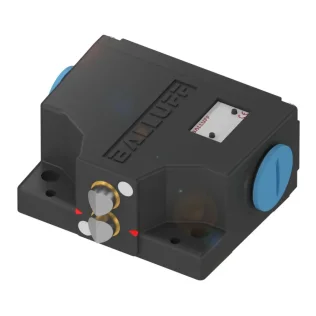

Balluff BNS02JZ, Safety Switch, BNS 813-B03-R12-61-A-10-01
Item #: 457724331
Dimension = 79 x 48 x 63 mm, Housing material = Aluminum, Anodized, Number of switching positions = 3x Roller, Version = Safety EN 60204-1, Operating principle = 1-3. Switch position: Mechanical, Continuous current = 1-3. Switch position: 6 A, Rated operating voltage Ue = 1-3. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-3. Switch position: 60 m/min, Switch position spacing = 12 mm, Connection type = 1-3. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS02JK, Safety Switch, BNS 813-B03-L12-61-A-10-01
Item #: 457724259
Dimension = 79 x 48 x 63 mm, Housing material = Aluminum, Anodized, Number of switching positions = 3x Roller bearing, Version = Safety EN 60204-1, Operating principle = 1-3. Switch position: Mechanical, Continuous current = 1-3. Switch position: 6 A, Rated operating voltage Ue = 1-3. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-3. Switch position: 120 m/min, Switch position spacing = 12 mm, Connection type = 1-3. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS00TA, Safety Switch, BNS 813-D03-D12-100-10-01
Item #: 457724382
Dimension = 120 x 80 x 83 mm, Housing material = Aluminum, Anodized, Number of switching positions = 3x Chisel, Version = Safety EN 60204-1, Operating principle = 1-3. Switch position: Mechanical, Continuous current = 1-3. Switch position: 6 A, Rated operating voltage Ue = 1-3. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-3. Switch position: 40 m/min, Switch position spacing = 12 mm, Connection type = 1-3. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE

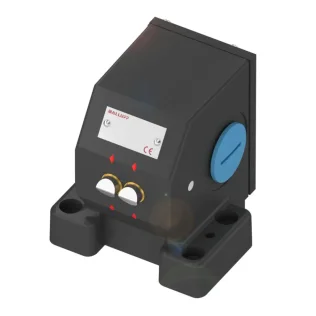

Balluff BNS0232, Safety Switch, BNS 813-B04-R12-72-10-01
Item #: 457724036
Dimension = 100 x 90 x 77 mm, Housing material = Aluminum, Anodized, Number of switching positions = 4x Roller, Version = Safety EN 60204-1, Operating principle = 1-4. Switch position: Mechanical, Continuous current = 1-4. Switch position: 6 A, Rated operating voltage Ue = 1-4. Switch position: 250 VAC, Installation = Horizontal, Approach direction = Vertical to mounting surface, Approach speed = 1-4. Switch position: 60 m/min, Switch position spacing = 12 mm, Connection type = 1-4. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS012E, Safety Switch, BNS 813-D05-R12-100-10-01
Item #: 457727561
Dimension = 120 x 105 x 83 mm, Housing material = Aluminum, Anodized, Number of switching positions = 5x Roller, Version = Safety EN 60204-1, Operating principle = 1-5. Switch position: Mechanical, Continuous current = 1-5. Switch position: 6 A, Rated operating voltage Ue = 1-5. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-5. Switch position: 60 m/min, Switch position spacing = 12 mm, Connection type = 1-5. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS012Z, Safety Switch, BNS 813-D06-D12-100-10-02
Item #: 457724002
Dimension = 120 x 120 x 83 mm, Housing material = Aluminum, Anodized, Number of switching positions = 6x Chisel, Version = Safety EN 60204-1, Operating principle = 1-6. Switch position: Mechanical, Continuous current = 1-6. Switch position: 6 A, Rated operating voltage Ue = 1-6. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-6. Switch position: 40 m/min, Switch position spacing = 12 mm, Connection type = 1-6. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE

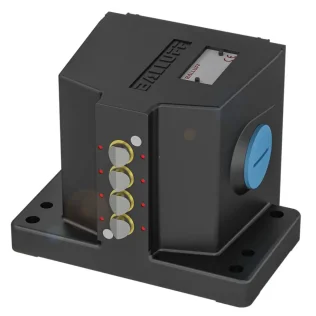

Balluff BNS0144, Safety Switch, BNS 813-D06-L12-100-20-02
Item #: 457723904
Dimension = 120 x 120 x 83 mm, Housing material = Aluminum, Anodized, Number of switching positions = 6x Roller bearing, Version = Safety EN 60204-1, Operating principle = 1-6. Switch position: Mechanical, Continuous current = 1-6. Switch position: 6 A, Rated operating voltage Ue = 1-6. Switch position: 250 VAC, Installation = Vertical, Approach direction = longitudinal, parallel to attachment surface, Approach speed = 1-2. Switch position: 80 m/min, 3-6. Switch position: 120 m/min, Switch position spacing = 12 mm, Connection type = 1-6. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
Balluff BNS044J, Safety Switch, BNS 813-B06-R12-72-22-06
Item #: 457723699
Dimension = 132 x 90 x 77 mm, Housing material = Aluminum, Anodized, Number of switching positions = 6x Roller, Version = Safety EN 60204-1, Operating principle = 1-6. Switch position: Mechanical, Continuous current = 1-6. Switch position: 6 A, Rated operating voltage Ue = 1-6. Switch position: 250 VAC, Installation = Horizontal, Approach direction = Vertical to mounting surface, Approach speed = 1-6. Switch position: 60 m/min, Switch position spacing = 12 mm, Connection type = 1-6. Switch position: Screw terminal, Ambient temperature = -5...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, CCC, WEEE
