Balluff BVS01ZF, Vision Sensor, BVS VS-M1280BF1-MB-000
Item #: 457727914
Sensor type Vision = CMOS 1/3" monochrome global shutter, Image resolution = 1.2 MP(1280 x 960 pixels), Application = Check on attendance, Brightness tool, BLOB, Error control, Finder, Code tool, Range = 50...600 mm, Field of view = 30 x 23 mm ... 305 x 230 mm, Focal length = 9.6 mm, Light type illumination = LED white, LED red, Housing material = Aluminum, Die casting, Painted, Dimension = 56 x 56 x 59 mm, Switching output = Push-pull NV, Push-pull Overall result, Push-pull external illumination Configurable by software, Interface = Profinet, TCP/UDP, IIoT (Gigabit Ethernet), Connection 1 = M12x1-Male, 4-pin, A-coded, Connection 2 = M12x1-Female, 8-pin, X-coded, Operating voltage Ub = 18...30 VDC, Ambient temperature = 0...55 °C, Approval/Conformity = CE, UKCA, cULus, WEEE, FCC, IP rating = IP67
Balluff BVS01ZH, Vision Sensor, BVS VS-M1280CF1-MB-000
Item #: 457727915
Sensor type Vision = CMOS 1/3" monochrome global shutter, Image resolution = 1.2 MP(1280 x 960 pixels), Application = Check on attendance, Brightness tool, BLOB, Error control, Finder, Code tool, Range = 50...600 mm, Field of view = 30 x 23 mm ... 305 x 230 mm, Focal length = 9.6 mm, Light type illumination = LED white, LED infrared, Housing material = Aluminum, Die casting, Painted, Dimension = 56 x 56 x 59 mm, Switching output = Push-pull NV, Push-pull Overall result, Push-pull external illumination Configurable by software, Interface = Profinet, TCP/UDP, IIoT (Gigabit Ethernet), Connection 1 = M12x1-Male, 4-pin, A-coded, Connection 2 = M12x1-Female, 8-pin, X-coded, Operating voltage Ub = 18...30 VDC, Ambient temperature = 0...55 °C, Approval/Conformity = CE, UKCA, cULus, WEEE, FCC, IP rating = IP67

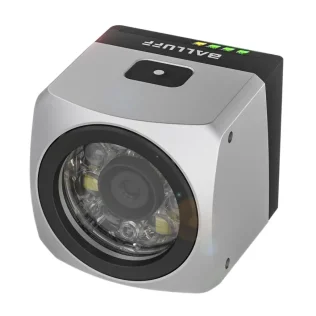

Balluff BVS01ZC, Vision Sensor, BVS VS-M1280BF1-L3-000
Item #: 457727916
Sensor type Vision = CMOS 1/3" monochrome global shutter, Image resolution = 1.2 MP(1280 x 960 pixels), Application = Check on attendance, Brightness tool, BLOB, Range = 50...600 mm, Field of view = 30 x 30 mm ... 305 x 230 mm, Focal length = 9.6 mm, Light type illumination = LED white, LED red, Housing material = Aluminum, Die casting, Painted, Dimension = 56 x 56 x 59 mm, Switching output = Push-pull NV, Push-pull Overall result, Push-pull external illumination Configurable by software, Interface = IO-Link 1.1, TCP/UDP, IIoT (Gigabit Ethernet), Connection 1 = M12x1-Male, 4-pin, A-coded, Connection 2 = M12x1-Female, 8-pin, X-coded, Operating voltage Ub = 18...30 VDC, Ambient temperature = 0...55 °C, Approval/Conformity = CE, UKCA, cULus, FCC, WEEE, IP rating = IP67
Balluff BVS01ZE, Vision Sensor, BVS VS-M1280CF1-L3-000
Item #: 457727917
Sensor type Vision = CMOS 1/3" monochrome global shutter, Image resolution = 1.2 MP(1280 x 960 pixels), Application = Check on attendance, Brightness tool, BLOB, Range = 50...600 mm, Field of view = 30 x 30 mm ... 305 x 230 mm, Focal length = 9.6 mm, Light type illumination = LED white, LED infrared, Housing material = Aluminum, Die casting, Painted, Dimension = 56 x 56 x 59 mm, Switching output = Push-pull NV, Push-pull Overall result, Push-pull external illumination Configurable by software, Interface = IO-Link 1.1, TCP/UDP, IIoT (Gigabit Ethernet), Connection 1 = M12x1-Male, 4-pin, A-coded, Connection 2 = M12x1-Female, 8-pin, X-coded, Operating voltage Ub = 18...30 VDC, Ambient temperature = 0...55 °C, Approval/Conformity = CE, UKCA, cULus, FCC, WEEE, IP rating = IP67

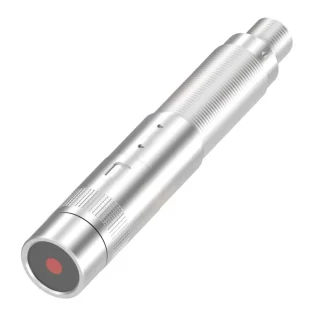

Balluff BAE0107, Vision Lighting Component, BAE LX-XO-PL018-E-L7-S103
Item #: 457723664
Ambient temperature = -10...50 °C, Housing material = Stainless steel, Glass, Nickel-plated brass nuts, Operating voltage Ub = 9...30 VDC, Dimension = ? 20 x 116 mm, IP rating = IP67, Light type = Laser Blue light, Approval/Conformity = CE, WEEE
Balluff BAE0108, Vision Lighting Component, BAE LX-XO-PL018-E-L8-S103
Item #: 457723575
Ambient temperature = -10...50 °C, Housing material = Stainless steel, Glass, Nickel-plated brass nuts, Operating voltage Ub = 9...30 VDC, Dimension = ? 20 x 116 mm, IP rating = IP67, Light type = Laser Green light, Approval/Conformity = CE, WEEE
Balluff BAE010A, Vision Lighting Component, BAE LX-XO-PL018-E-C1-S103
Item #: 457724050
Ambient temperature = -10...50 °C, Housing material = Stainless steel, Glass, Nickel-plated brass nuts, Operating voltage Ub = 5...30 VDC, Dimension = ? 20 x 116 mm, IP rating = IP67, Light type = Laser Red light, Approval/Conformity = CE, WEEE
Balluff BAE0106, Vision Lighting Component, BAE LX-XO-PL018-E-L3-S103
Item #: 457724037
Ambient temperature = -10...50 °C, Housing material = Stainless steel, Glass, Nickel-plated brass nuts, Operating voltage Ub = 5...30 VDC, Dimension = ? 20 x 116 mm, IP rating = IP67, Light type = Laser Red light, Approval/Conformity = CE, WEEE
Balluff BAE0104, Vision Lighting Component, BAE LX-XO-PL018-E-L1-S103
Item #: 457723957
Ambient temperature = -10...50 °C, Housing material = Stainless steel, Glass, Nickel-plated brass nuts, Operating voltage Ub = 5...30 VDC, Dimension = ? 20 x 116 mm, IP rating = IP67, Light type = Laser Red light, Approval/Conformity = CE, WEEE
Balluff BAE011M, Vision Lighting Component, BAE LX-VS-SW030A
Item #: 457724072
Version = Spotlight, Illumination area = ? 25 mm, Light type = LED White light, Dimension = ? 30 x 67.5 mm, Material = 1.4301 stainless steel, Brass, PC, Order Code = BAE011M
