RFID

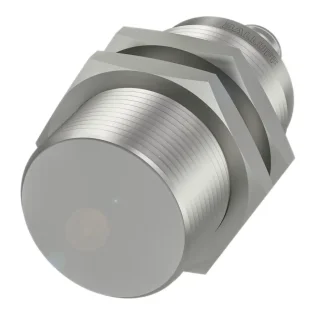

Special characteristics = Washdown Plus, Washdown, Product Group = HF (13.56 MHz), Dimension = ? 30 x 65 mm, Installation = metal-free (clear zone), on metal, flush in metal, Antenna type = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Connector, M12x1-Male, 4-pin, Housing material = 1.4404 stainless steel, Interface = IO-Link 1.1, Transfer rate = COM3 (230.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Supports only LPS/Class 2, Ambient temperature = 0...70 °C, IP rating = IP68, IP69K, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE, Ecolab, cULus, MIC, Secondary features = Identification, Device Discovery, Signal Quality Monitoring, Basic Statistics, Operating Hours Counter, Boot Cycle Counter, Voltage and Current Monitoring, Extreme Environment Status, Storage Usage Monitoring, Variant Configuration, Pin Assignment, Secondary features for condition monitoring = Vibration monitoring, Inclination monitoring and installation aid, Internal temperature monitoring

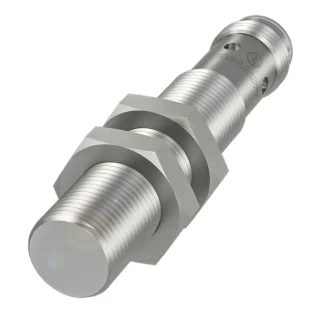

Special characteristics = Washdown, Product Group = HF (13.56 MHz), Dimension = ? 12 x 65 mm, Installation = metal-free (clear zone), on metal, flush in metal, Antenna type = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Connector, M12x1-Male, 4-pin, Housing material = 1.4404 stainless steel, Interface = IO-Link 1.0, Transfer rate = COM3 (230.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Supports only LPS/Class 2, Ambient temperature = 0...70 °C, IP rating = IP68, IP69K, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE, Ecolab, cULus, MIC

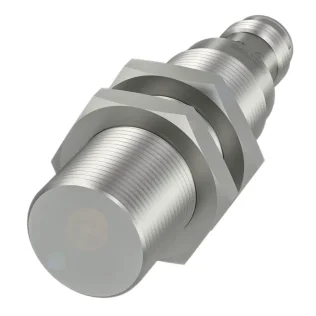

Special characteristics = Washdown, Product Group = HF (13.56 MHz), Dimension = ? 18 x 65 mm, Installation = metal-free (clear zone), on metal, flush in metal, Antenna type = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Connector, M12x1-Male, 4-pin, Housing material = 1.4404 stainless steel, Interface = IO-Link 1.0, Transfer rate = COM3 (230.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Supports only LPS/Class 2, Ambient temperature = 0...70 °C, IP rating = IP68, IP69K, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE, Ecolab, cULus, MIC, Secondary features = Identification, Device Discovery, Signal Quality Monitoring, Basic Statistics, Operating Hours Counter, Boot Cycle Counter, Voltage and Current Monitoring, Extreme Environment Status, Storage Usage Monitoring, Variant Configuration, Pin Assignment, Secondary features for condition monitoring = Vibration monitoring, Inclination monitoring and installation aid, Internal temperature monitoring

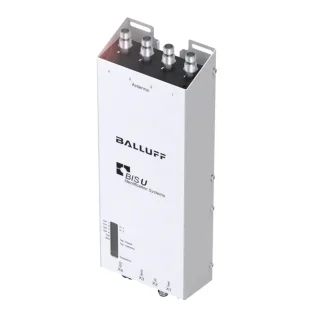

Product Group = UHF (860...960 MHz), Working frequency = 902?928 MHz, Radio license = USA, Canada, Mexico, Interface = Ethernet TCP/IP, Supported RFID technologies = UHF 860...960 MHz (BIS U), Number of connectable R/W heads / antennas = 4, Output power adjustable = 7 dBm?30 dBm (5 mW?1 W), Operating voltage Ub = 19.2...28.8 VDC LPS Class 2, Housing material = Stainless steel, Aluminum, coated, Ambient temperature = -20...55 °C, IP rating = IP65, with connector, Approval/Conformity = FCC Part 15, IC (Radio), cULus, WEEE, IFT

Special characteristics = Washdown Plus, Washdown, Product Group = HF (13.56 MHz), Dimension = 25 x 10 x 50 mm, Installation = metal-free (clear zone), on metal, flush in metal, Antenna type = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Connector, M12x1-Male, 4-pin, Housing material = ABS, ABS-GF16, Interface = IO-Link 1.1, Transfer rate = COM3 (230.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Supports only LPS/Class 2, Ambient temperature = 0...70 °C, IP rating = IP68, IP69K, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE, Ecolab, cULus, MIC, Secondary features = Identification, Device Discovery, Signal Quality Monitoring, Basic Statistics, Operating Hours Counter, Boot Cycle Counter, Voltage and Current Monitoring, Extreme Environment Status, Storage Usage Monitoring, Variant Configuration, Pin Assignment, Secondary features for condition monitoring = Vibration monitoring, Inclination monitoring and installation aid, Internal temperature monitoring

Product Group = HF (13.56 MHz), Dimension = 40 x 26.8 x 70 mm, Installation = metal-free (clear zone), on metal, flush in metal, Antenna type = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Connector, M12x1-Male, 4-pin, Housing material = Die casting, Nickel-plated brass, Interface = IO-Link 1.1, Transfer rate = COM2 (38.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Supports only LPS/Class 2, Ambient temperature = -20...80 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE, cULus

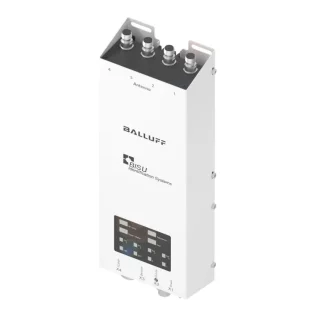

Product Group = UHF (860...960 MHz), Working frequency = 920.5?924.5 MHz, Radio license = China, Interface = Ethernet TCP/IP, Supported RFID technologies = UHF 860...960 MHz (BIS U), Number of connectable R/W heads / antennas = 4, Output power adjustable = 17 dBm...31.5 dBm (50 mW...1.4 W), Operating voltage Ub = 19.2...28.8 VDC, Housing material = Steel, Aluminum, coated, Ambient temperature = -20...55 °C, IP rating = IP65, with connector, Approval/Conformity = SRRC, WEEE, cULus

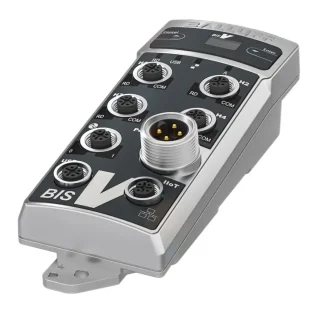

Product Group = Multi-Frequency Processor, Interface = Ethernet TCP/IP MQTT, REST API, USB, Supported RFID technologies = LF 125 kHz (BIS VL), HF 13.56 MHz (BIS VM), UHF 860...960 MHz (BIS VU), Number of connectable R/W heads / antennas = 4, Operating voltage Ub = 24 V DC LPS Class 2, Housing material = Zinc, Die casting, Ambient temperature = 0...60 °C, IP rating = IP65, with connector, Approval/Conformity = CE, cULus, WEEE, UKCA, Connection = M12x1-Female, 4-pin, D-coded, M12x1-Female, 5-pin, A-coded, 7/8"-Male, 4-pin

Product Group = Multi-Frequency Processor, Interface = Ethernet TCP/IP MQTT, REST API, USB, Supported RFID technologies = LF 125 kHz (BIS VL), HF 13.56 MHz (BIS VM), UHF 860...960 MHz (BIS VU), Number of connectable R/W heads / antennas = 4, Operating voltage Ub = 24 V DC LPS Class 2, Housing material = Zinc, Die casting, Ambient temperature = 0...60 °C, IP rating = IP65, with connector, Approval/Conformity = CE, cULus, WEEE, UKCA, Connection = M12x1-Female, 4-pin, D-coded, M12x1-Female, 5-pin, A-coded, M12x1-Male, 5-pin

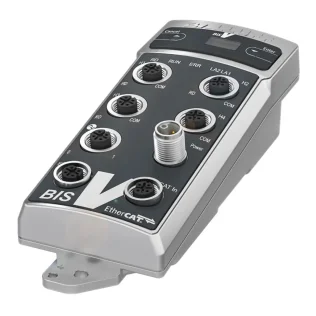

Product Group = Multi-Frequency Processor, Interface = EtherCAT, Supported RFID technologies = LF 125 kHz (BIS VL), HF 13.56 MHz (BIS VM), UHF 860...960 MHz (BIS VU), Number of connectable R/W heads / antennas = 4, Operating voltage Ub = 24 V DC LPS Class 2, Housing material = Zinc, Die casting, Ambient temperature = 0...60 °C, IP rating = IP65, with connector, Approval/Conformity = CE, cULus, WEEE, UKCA, Connection = 2x M12x1-Female, 4-pin, D-coded, M12x1-Male, 5-pin
